AfterVLX 500 Single & Double Hung Window in Palm Beach, FL | TruePane Windows & Doors

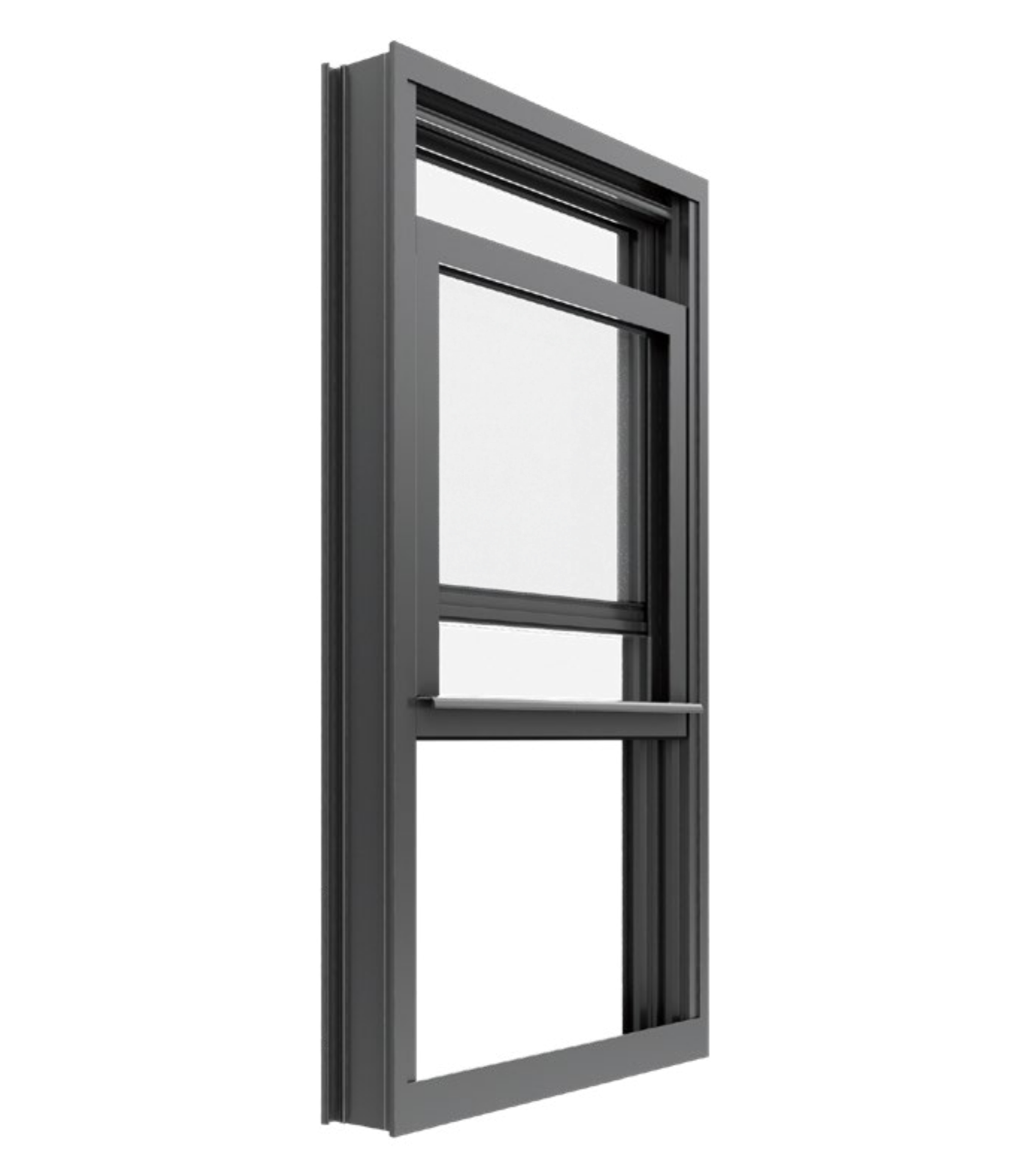

The VLX 500 Single & Double Hung Window is a vertical-glide aluminum window built for homes that face real weather. Both sashes move independently, and each tilts inward so you can clean the exterior glass from inside your house. That tilt-in design matters more than most people expect in Palm Beach, where salt air, afternoon storms, and pollen mean windows get dirty faster than they do inland. TruePane Windows & Doors is an authorized installation partner for the manufacturer behind the VLX 500, which means we install this product to factory spec and stand behind the work with a real installation warranty. Call (850) 801-5596 to talk specs, pricing, or schedule a free on-site measurement.
Product Overview - VLX 500 Single & Double Hung Window
Aluminum hung windows have been a Florida staple for decades, and the VLX 500 shows why. The design keeps a classic vertical-glide operation that reads traditional from the street, but the engineering under the surface is current-generation. Both the upper and lower sashes slide on smooth tracks, and either sash tilts into the room for cleaning. In a two-story Palm Beach home, that means no ladder work to wipe down second-floor glass.

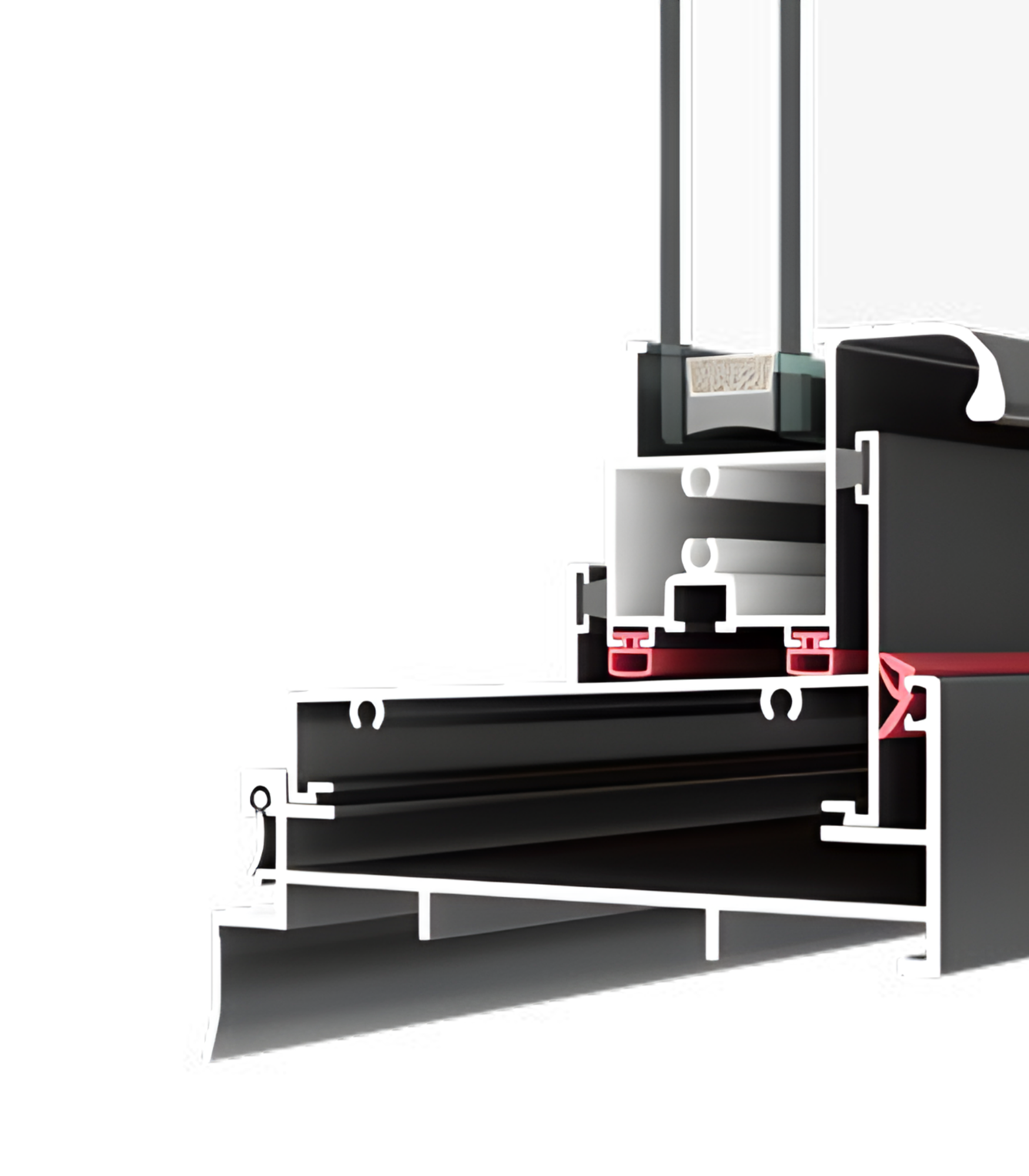

The frame is extruded aluminum with a profile depth of 2.36 inches and wall thickness of 0.079 inches. Those numbers translate to a window that stays square over time, resists racking during high winds, and won’t sag on wide openings the way thinner profiles sometimes do. Homeowners choosing this series are usually replacing older builder-grade aluminum windows that have fogged, corroded, or lost their seal. The VLX 500 solves all three of those problems with modern glazing, a thermal break, and proper perimeter sealing during installation.
Where this window fits architecturally: it works equally well in a 1960s ranch in West Palm Beach, a coastal contemporary in Lake Worth Beach, or a mid-rise condo unit along Flagler Drive. The narrow sightlines preserve the view, and the finish options let you match almost any exterior trim color. We’ve installed the VLX 500 in neighborhoods from El Cid to Palm Beach Gardens, and it consistently handles the salt-laden air better than vinyl alternatives that soften and discolor after a few seasons of direct coastal exposure.
Technical Specifications
- Frame material: Extruded aluminum, 0.079″ wall thickness for structural rigidity
- Frame depth: 2.36″ profile width, engineered for clean sightlines and stable operation
- Glass packages: Clear, Frosted, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Screen configurations: Half-Screen or Full Screen, removable for cleaning
- Sash operation: Dual sliding sashes with independent tilt-in cleaning function
- Thermal performance: Thermally broken frame, NFRC-rated energy data available per configuration
- Installation standard: AAMA 2400/2410 compliant, installed by TruePane Windows & Doors
- Storm-readiness: Impact-resistant laminated glass option; wind-load rated for Palm Beach County requirements
Every VLX 500 order is built to the exact opening dimensions we measure on site. That means no oversized rough openings, no shim stacks, and no caulk-filled gaps around the frame. The result is a window that performs the way the manufacturer rated it.
Performance Features
Thermal Efficiency - The VLX 500 frame includes a thermal break that separates the interior and exterior aluminum faces. Aluminum conducts heat quickly without that break, which is why older Florida windows turn into radiators by mid-afternoon. With Low-E glass added, the VLX 500 keeps Palm Beach cooling loads down during the long summer months and holds conditioned air inside. NFRC ratings are available for each glass and frame configuration we quote.
Acoustic Performance - If you live near Dixie Highway, the Brightline tracks, or a busy stretch of Okeechobee Boulevard, you know road noise doesn’t stop at the property line. Laminated glass in the VLX 500 cuts sound transmission noticeably compared to single-pane clear glass. We’ve had customers in West Palm Beach tell us they stopped hearing sirens after swapping out their old aluminum frames for this series with laminated glazing.

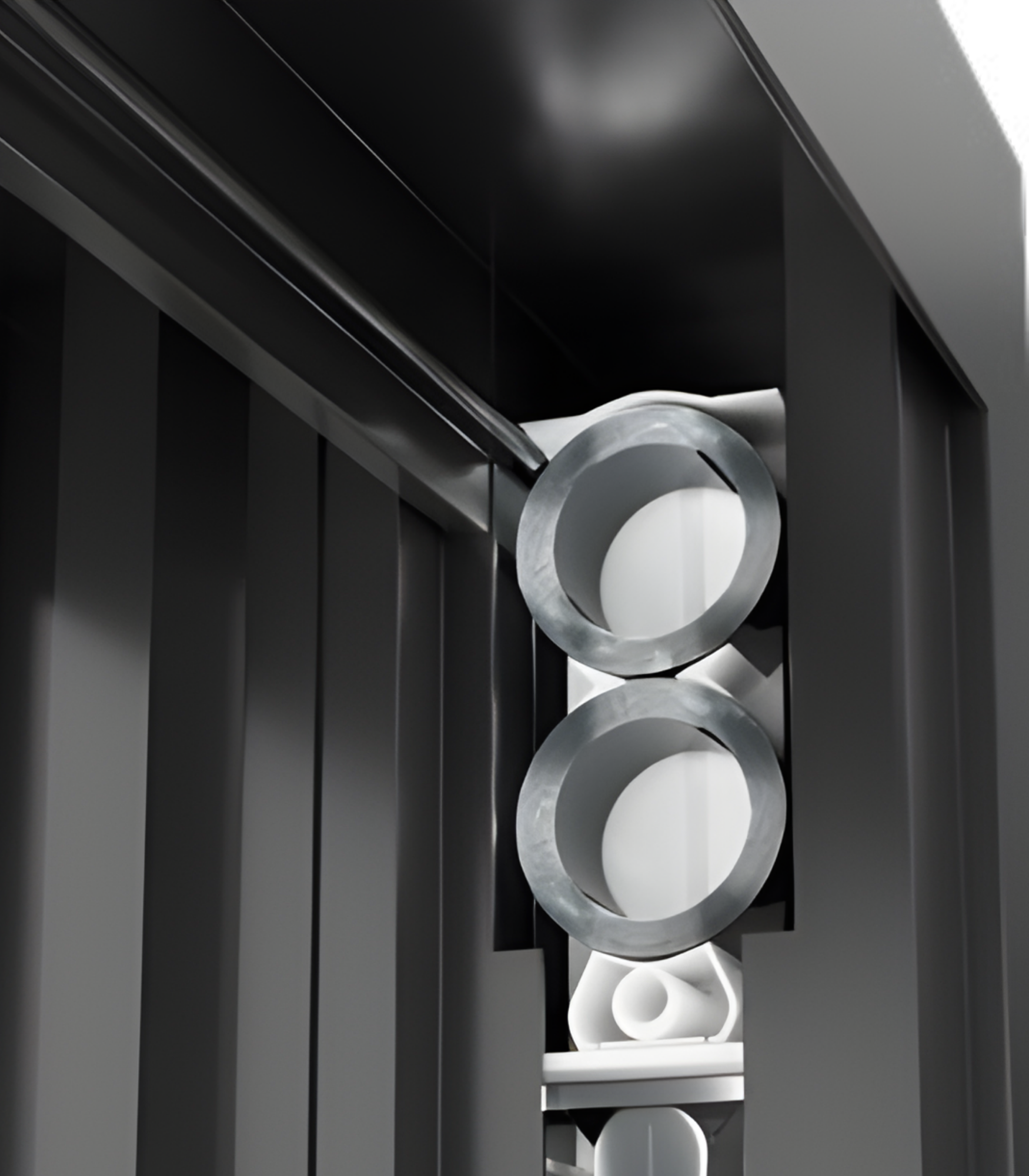

Airtightness & Weather Seal - Air leakage is the silent killer of window performance. The VLX 500 uses compression weatherstripping along both sashes and the meeting rail, plus a properly sealed perimeter when installed. We apply AAMA 812 low-expansion foam sealant around every joint at installation. No gaps, no drafts, no whistling when a cold front blows through in December.
Waterproofing - Hung windows are only as waterproof as their sill design and their installation. The VLX 500 has a sloped sill with drainage channels that direct water away from the interior. We pair that with a full perimeter seal system and a final water test after install. In Palm Beach’s rainy season, that’s the difference between a window that shrugs off a downpour and one that stains your drywall.
Wind Resistance - Hurricane season is a fact of life here. The VLX 500 is wind-load rated for local climate requirements, and the impact-resistant laminated glass option brings the window up to storm-protection territory when paired with the right framing. The 0.079″ wall thickness matters here too: thinner frames deflect under pressure and can compromise the glass seal. This frame doesn’t.
Security & Hardware - Both sashes lock at the meeting rail with a cam-action lock, and the aluminum frame resists prying far better than vinyl. Laminated glass adds another layer: even if someone strikes the glass, the interlayer holds the pane together. For ground-floor windows in areas like Northwood or neighborhoods near Clematis Street, that’s a meaningful deterrent.
Color & Glass Options
The VLX 500 comes in six finishes: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Premium Black is the most requested finish in Palm Beach right now, especially on modern builds and renovated mid-century homes where black frames against white stucco create a sharp, architectural look. Pure White works for traditional Bermuda and Mediterranean styles. Bronze and Anodized Silver are the quiet workhorses that match standard aluminum frames already on many Florida homes. Champagne has a warm cast that complements beige and cream exteriors without going full copper. Teak Wood gives you a wood-tone look with none of the rot, termite, or repainting problems real wood brings in this climate.
On glass: Clear is the baseline, used most often on interior-facing or budget-sensitive replacements. Frosted is ideal for bathrooms, entries, or anywhere privacy matters more than view. Low-E is our standard recommendation for any window that gets direct sun: it reflects a portion of solar heat before it enters the room. Tempered glass meets safety glazing code for windows near doors, in wet areas, and in low sill applications. Laminated glass is the upgrade for impact resistance and sound control. For most Palm Beach coastal homes, we recommend Low-E laminated glass on street-facing and water-facing elevations.
Installation by TruePane Windows & Doors in Palm Beach
A high-performance window installed poorly performs worse than a cheap window installed well. That’s not marketing speak; it’s what the manufacturer warranty language says in plain print. Improper installation voids the ViewLux warranty on the VLX 500. Our entire installation process is built around protecting that warranty and making the window perform the way it was engineered to perform.
Before installation, we inspect every opening for existing water damage, bowed framing, or termite issues that need to be addressed before the new window goes in. Slipping a new window into a rotted buck means you’ll be tearing it out again in three years. We’d rather tell you now than surprise you later.
Each VLX 500 goes in level, plumb, and square. We don’t “eyeball it.” We set each unit with shims and check it with a level on three axes. Then we seal the entire perimeter joint with AAMA 812 low-expansion foam. Low-expansion is critical here: too much expansion pressure can bow the frame and bind the sashes. We’ve seen rushed installs in Palm Beach where the sashes wouldn’t open because the foam had warped the jamb. That doesn’t happen with our crew.
Our installs follow AAMA 2400/2410 installation standards, which is the industry benchmark for window and door installation in the field. After sealing and trimming, we run a water test on each opening to confirm nothing is getting through. Then we clean the site. Your windowsill should not have caulk smears or foam ooze when we leave.
Palm Beach has its own considerations. The coastal wind zone means every install gets checked against current Palm Beach County building code requirements for the glass package you selected. Salt air accelerates corrosion on exposed fasteners, so we use stainless or coated hardware at every point of contact. And because this climate cycles between blazing sun and driving rain, we pay extra attention to the joint between the frame and the exterior finish. That’s where most window failures here begin.
Call (850) 801-5596 to schedule your free on-site measurement and walkthrough.
Frequently Asked Questions - VLX 500 Single & Double Hung Window
Lead time on the VLX 500 typically runs 3 to 6 weeks from order confirmation to delivery at our shop, depending on glass package and finish availability. Custom sizes and laminated glass configurations can push that toward the upper end. We give you a written timeline with your quote so you know exactly when to expect installation. Call (850) 801-5596 and we’ll give you a current lead time for your specific configuration.
The answer depends on the glass package you choose and the federal or state program in effect at the time of purchase. Low-E glass configurations with NFRC ratings that meet the current energy efficiency thresholds are the most likely to qualify. We provide the NFRC documentation with your quote so you can check eligibility with your tax preparer. We don’t promise tax credits we can’t verify, but we do give you the paperwork to find out.
The VLX 500 carries a ViewLux manufacturer warranty on the frame and glass, and TruePane Windows & Doors provides a separate installation workmanship warranty on everything we touch. The manufacturer warranty is only valid if the window is installed by an authorized partner using factory-specified methods, which is exactly what we do. We’ll cover the warranty terms in detail during your estimate so there are no surprises.
Yes. The VLX 500 is not a stock-size product. Every unit we order is built to the exact rough opening dimensions we measure on site at your Palm Beach home. That includes wide openings, tall openings, and non-standard combinations like picture-window and hung-window groupings. We measure, you approve the layout, and the factory builds to spec.
Aluminum frames need very little maintenance, but the salt air here warrants a rinse with fresh water two or three times a year. That prevents salt deposits from building up on the finish, especially on Anodized Silver and Bronze frames. The tilt-in sashes make it easy to clean both sides of the glass from inside. Check the weatherstripping once a year, and keep the tracks free of sand and grit. The VLX 500 was built for coastal life; a little rinse keeps it looking new for decades.
Get a Quote - VLX 500 Single & Double Hung Window in Palm Beach
Ready to price the VLX 500 for your Palm Beach home? Call (850) 801-5596 to schedule a free on-site measurement. We’ll walk the openings with you, discuss glass and finish options for your specific elevation, and give you a written, line-item quote. No pressure, no vague ballparks. Just real numbers from an authorized ViewLux installation partner who does the work right.
Call (850) 801-5596 today to get your project started.
Written by the team at TruePane Windows & Doors, serving Palm Beach, FL and surrounding coastal communities.
