The VLX 138 Panoramic Sliding Door is a large-span aluminum slider built for homeowners in Palm Beach, FL who want a wall of glass between the living room and the patio, pool, or ocean view. It opens up to 36 feet wide with ultra-smooth stainless bearing glide hardware, which means panels that weigh hundreds of pounds still move with one hand. TruePane Windows & Doors is an authorized ViewLux installation partner, so when we install this door in your Palm Beach home, the manufacturer warranty stays fully intact. Call (850) 801-5596 for a free on-site measurement and a written quote.

Call (850) 801-5596

Product Overview - VLX 138 Panoramic Sliding Door

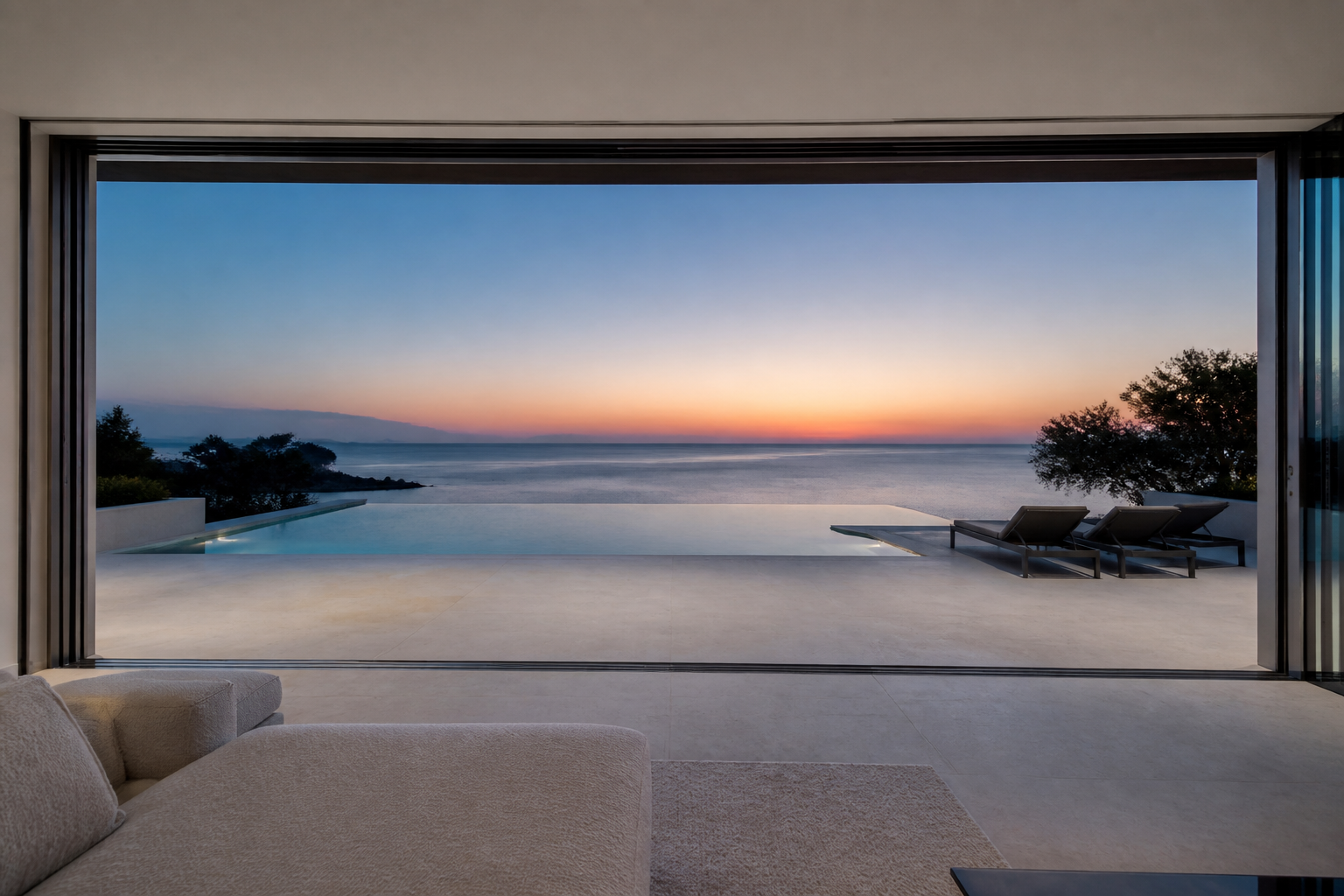

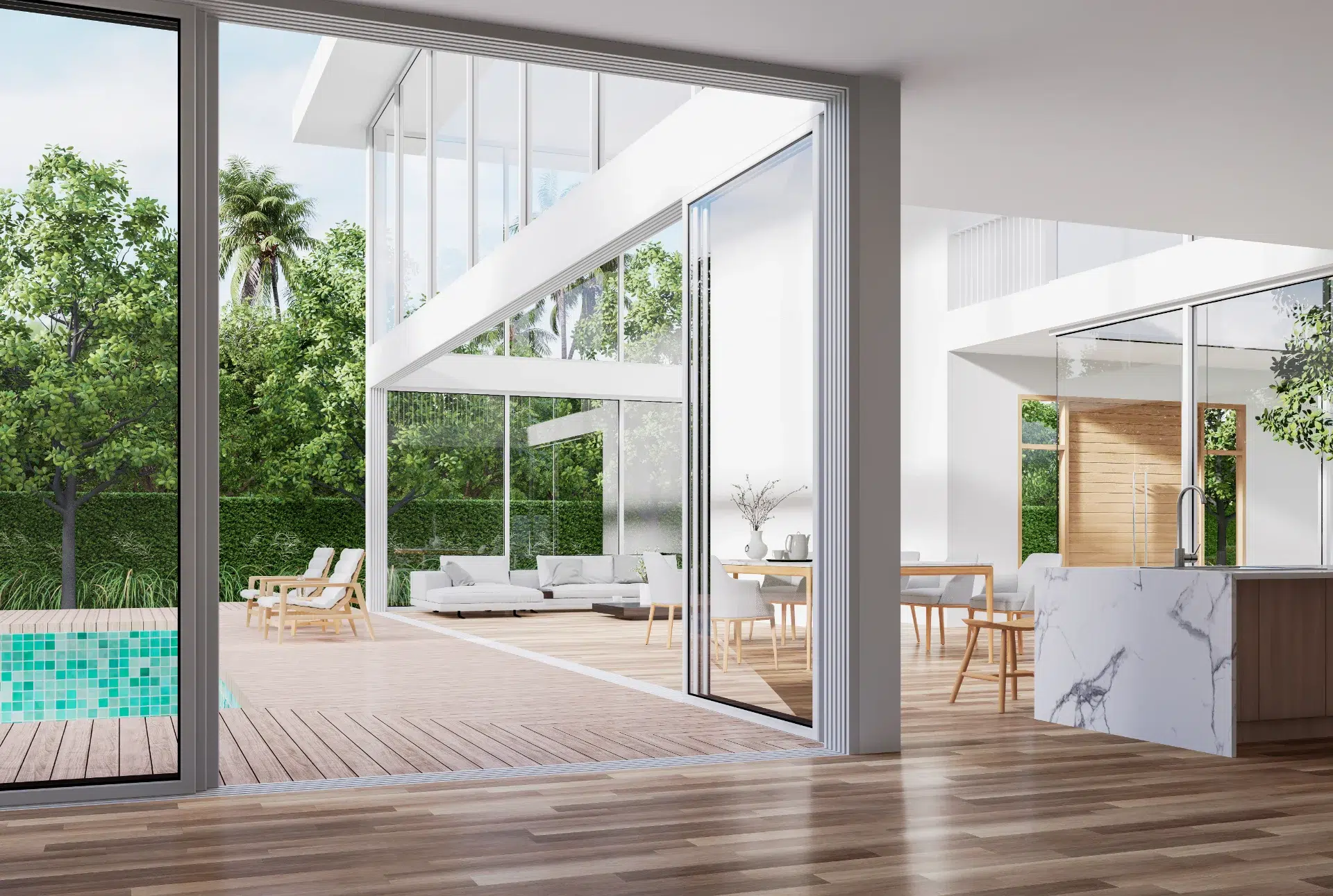

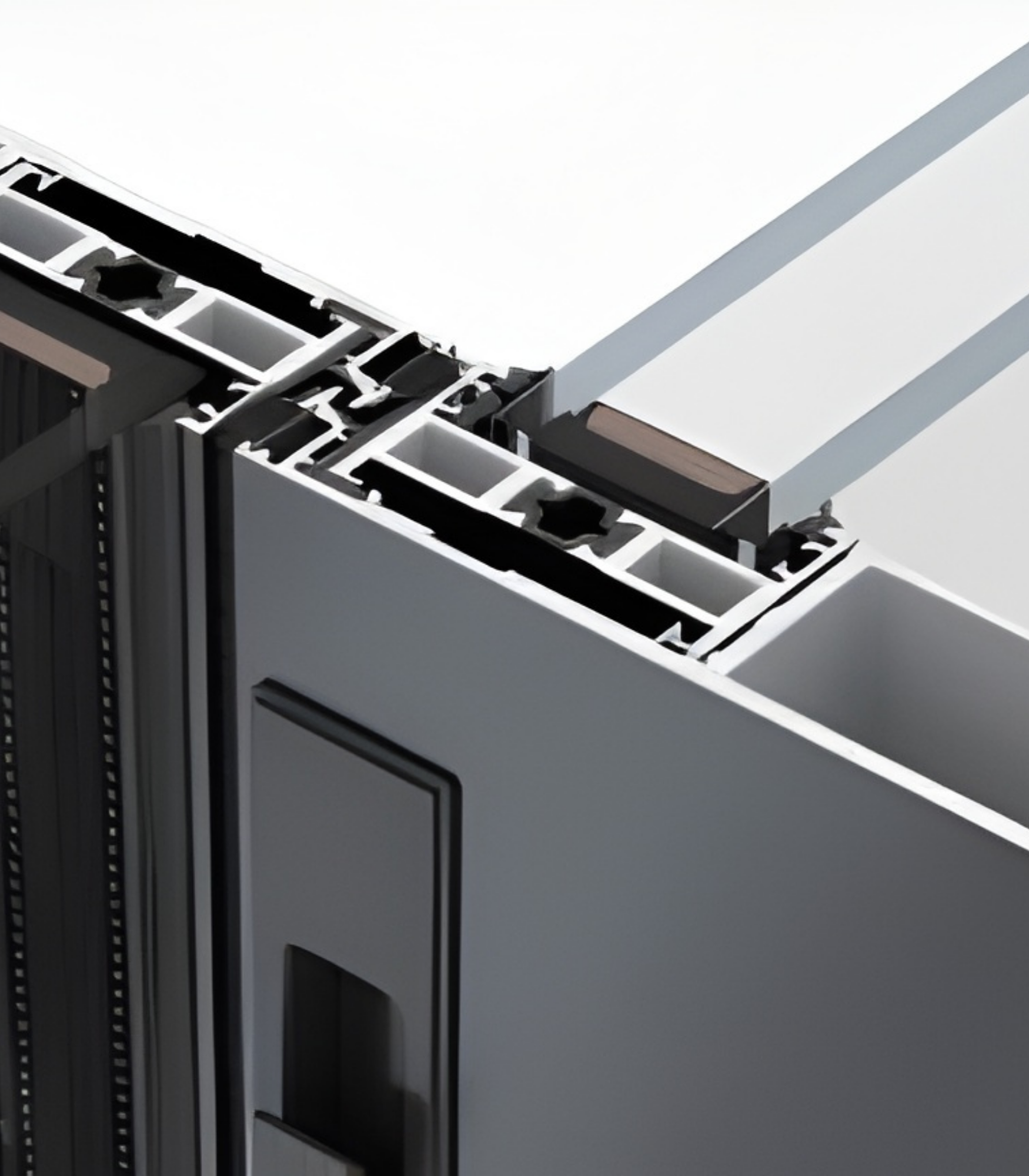

The VLX 138 exists for one reason: uninterrupted glass. The design keeps vertical sightlines as thin as possible while using a beefy 0.138-inch wall extrusion so the frame doesn’t twist, sag, or bind over decades of daily use in South Florida humidity. We regularly install this series in Palm Beach homes where the old sliding door was a four-panel aluminum unit with wide stiles that chopped the view into ribbons. Homeowners switch to the VLX 138 specifically because the panel width-to-glass ratio is dramatically better. You see the water, the courtyard, the pool, the sunset. Not door frames.

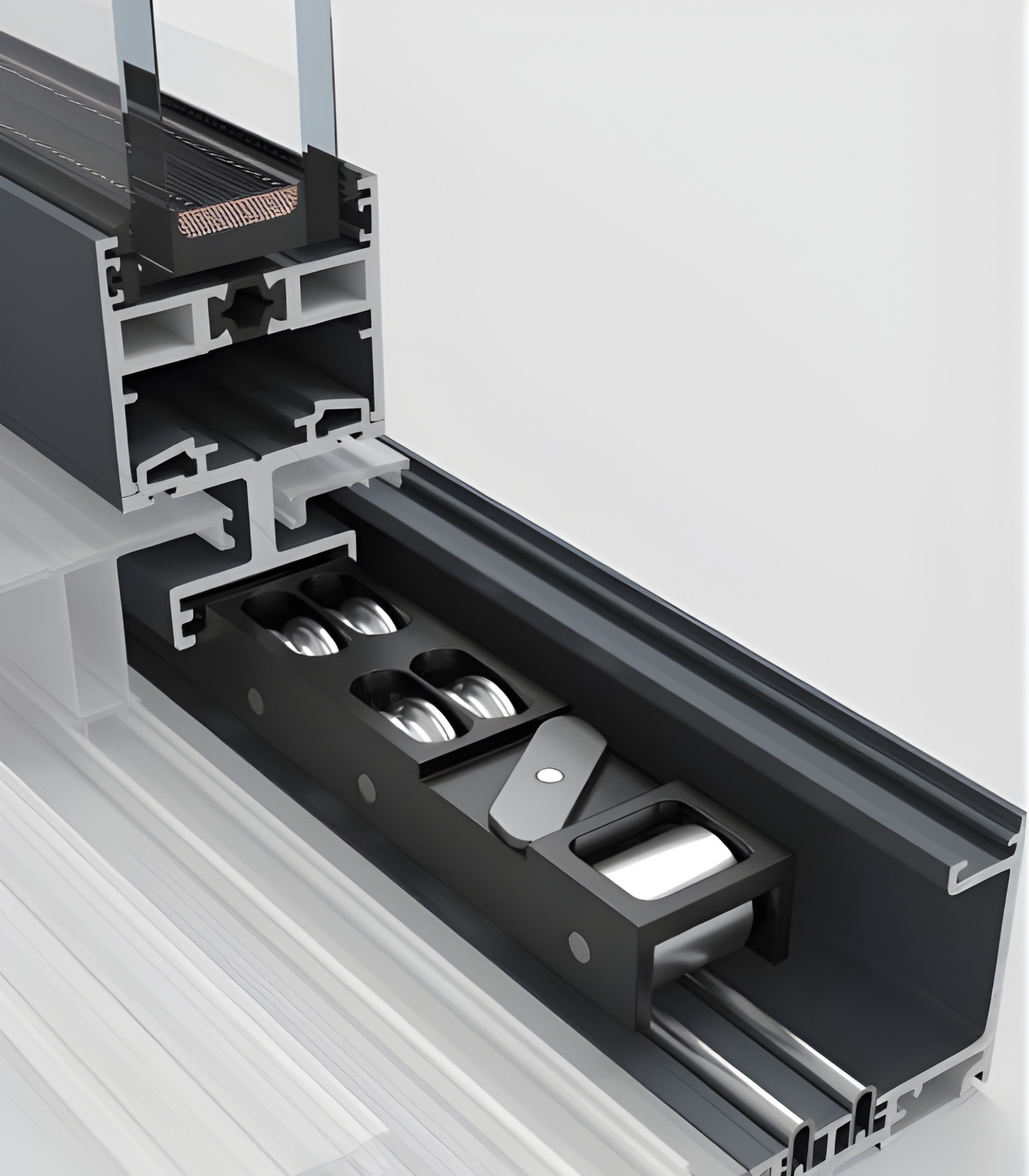

The glide is the second thing people notice. Each panel rides on stainless steel bearings, not nylon rollers that flatten over time. In concrete terms, a 1,200-pound panel opening on the VLX 138 feels like a 40-pound door. The architecture of Palm Beach leans heavily on indoor-outdoor living: loggias, summer kitchens, pool pavilions, and oceanfront walls that open fully. This door fits that build style better than any standard patio slider we’ve installed in the area.

We recommend the VLX 138 for three types of Palm Beach projects. First, direct oceanfront or Intracoastal homes where wind load and corrosion resistance are non-negotiable. Second, mid-century ranch homes in El Cid, Flamingo Park, or Northwood that are being renovated with modern glass. Third, any homeowner tired of fighting a sticky, corroded 1990s slider who wants the opening to actually work every day. The frame is thermally broken aluminum, so the interior surface stays within a few degrees of room temperature even when the Palm Beach sun has been beating on it since noon.

Call (850) 801-5596 to talk through your opening size, glass package, and track configuration. We’ll tell you honestly whether the VLX 138 is the right fit or if another series makes more sense for your budget and wall dimensions.

Technical Specifications

Here’s what you’re getting with the VLX 138, in plain terms.

• Frame wall thickness: 0.138 inches. This is considered heavy-duty for residential aluminum. It resists deflection on tall panels and holds its shape on large openings.
• Profile width: 1.535 inches. The visible frame face keeps sightlines slim while carrying real structural load.
• Maximum span: Up to 36 feet wide. Meaningful for Palm Beach great rooms that open to a full-width lanai.
• Track configurations: 2-track, 3-track, or 4-track. More tracks mean more panels that stack to one side or pocket into a wall cavity.
• Glass options: Clear, Low-E, Frosted, Obscure, Black Tint, and Gray Tint. All can be specified in impact-resistant laminated construction.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Powder-coated or anodized depending on the finish.
• Screen options: Retractable screen or a traditional sliding screen panel.

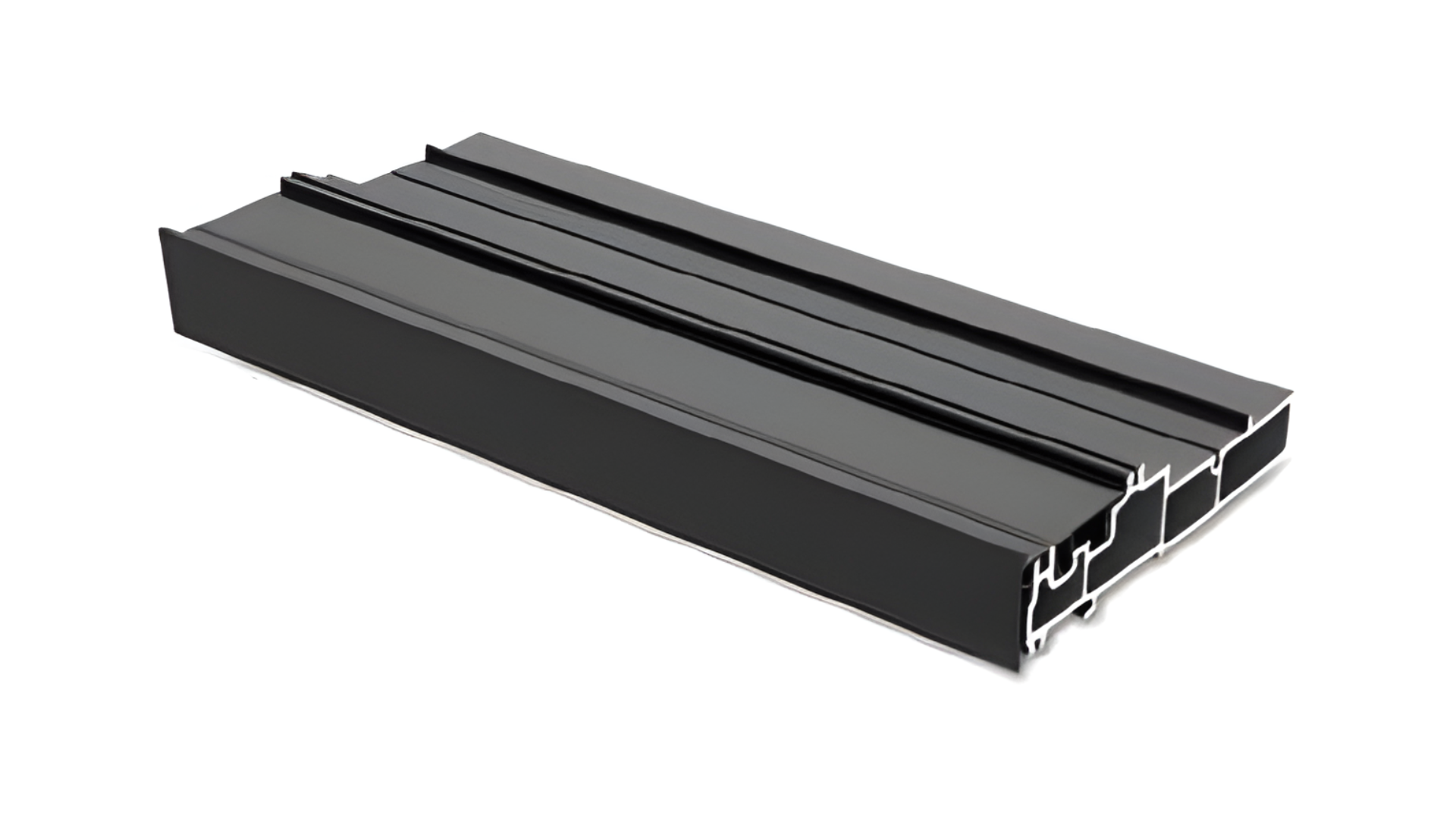

• Sill options: Flush sill (zero threshold, wheelchair and cane friendly), low-profile sill, or recessed sill that drops into the slab for a truly seamless transition.

All configurations are fabricated to your exact opening dimensions. We don’t shim a stock size into your wall and call it done. These doors are measured in the field, ordered to the quarter inch, and installed square, plumb, and level so every panel tracks true.

Performance Features

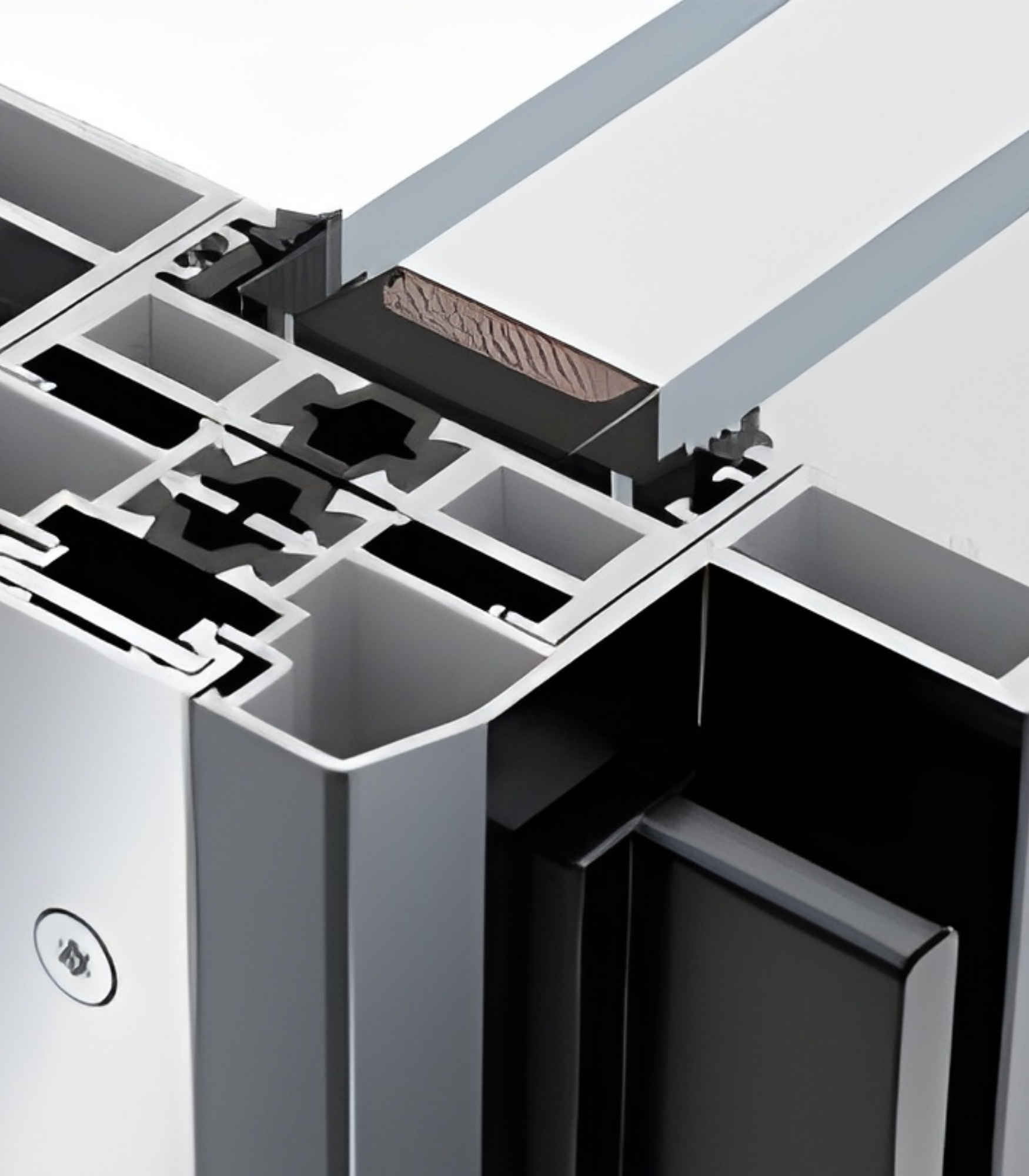

Thermal Efficiency. The VLX 138 uses a thermal break inside the aluminum profile. This strips the metal-to-metal heat transfer that makes unbroken aluminum frames sweat in Palm Beach. The system is NFRC-rated, so you can compare its real U-factor and Solar Heat Gain Coefficient against fiberglass and vinyl alternatives. In practical terms, you won’t feel outdoor heat radiating through the interior frame face.

Acoustic Performance. Denser aluminum mass plus laminated glass options cuts the noise. We’ve installed VLX 138 units on homes within earshot of Southern Boulevard and Okeechobee traffic where the interior noise drop was immediately obvious. Frosted and obscure glass packages don’t affect acoustic ratings, but thickness does. Ask us about laminated glass if you’re near a busy road, a fire station, or late-night pool activity next door.

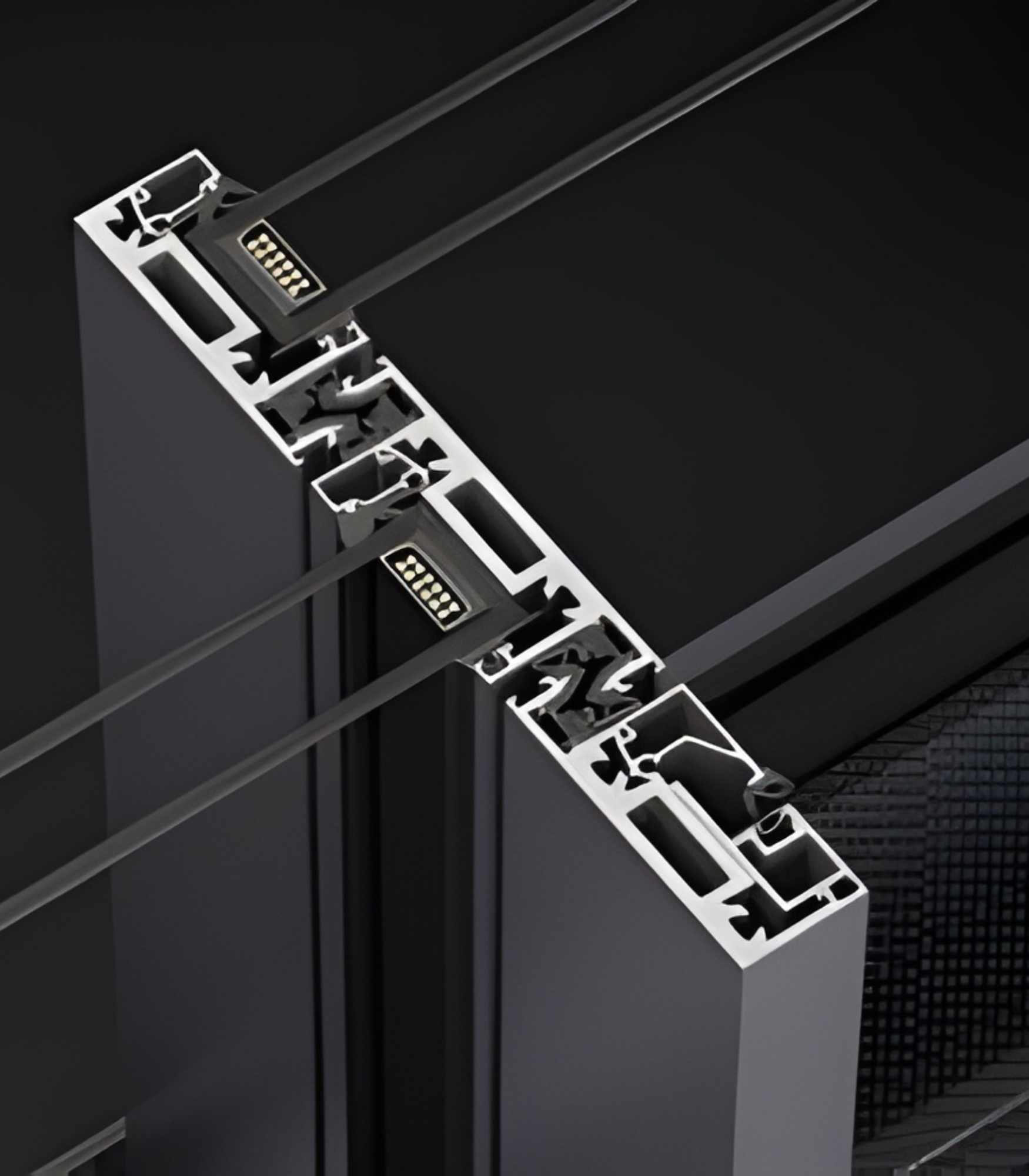

Airtightness & Weather Seal. Every panel in the VLX 138 carries interlocking weatherstripping along the meeting stiles. When panels close, the seals compress against each other and against the frame. This is what keeps air-conditioned air inside during a Palm Beach August. The system’s airtightness rating is designed for continuous daily use, not just a showroom test. The wool pile and compression gaskets are replaceable, so the door can be re-sealed years down the road without replacing the whole unit.

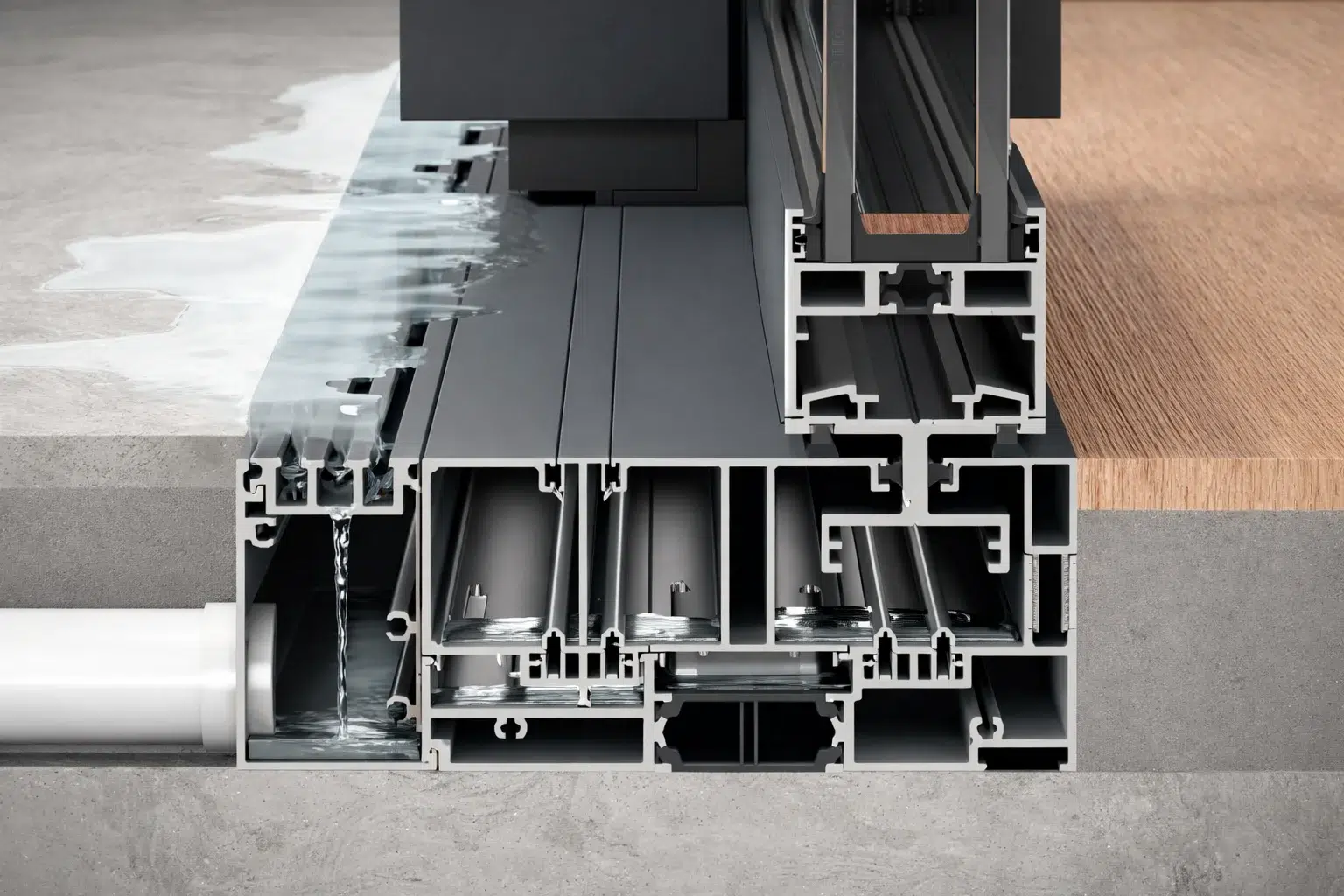

Waterproofing. The sill design on the VLX 138 is engineered as a three-stage system: exterior drainage channels, an internal weep path, and the interior air seal. Driving rain against a south-facing Palm Beach exposure will drain out the bottom, not under the frame. We add AAMA 812 low-expansion foam sealant at every perimeter joint during installation, per AAMA 2400/2410 standards. That foam forms the back-up water barrier that flash-and-batt leave out. It’s the difference between a door that leaks in the third hurricane season and one that doesn’t.

Wind Resistance. The VLX 138 is engineered and tested for elevated wind-load requirements, which matters on any Palm Beach barrier island property or high-rise condo where code wind speeds run 170 mph or higher. The 0.138″ frame wall, the interlocking stiles, and the multi-point hardware make this a serious structural opening. For impact zones, we spec impact-resistant laminated glass that meets the local building code without needing accordion shutters that block the view you paid for.

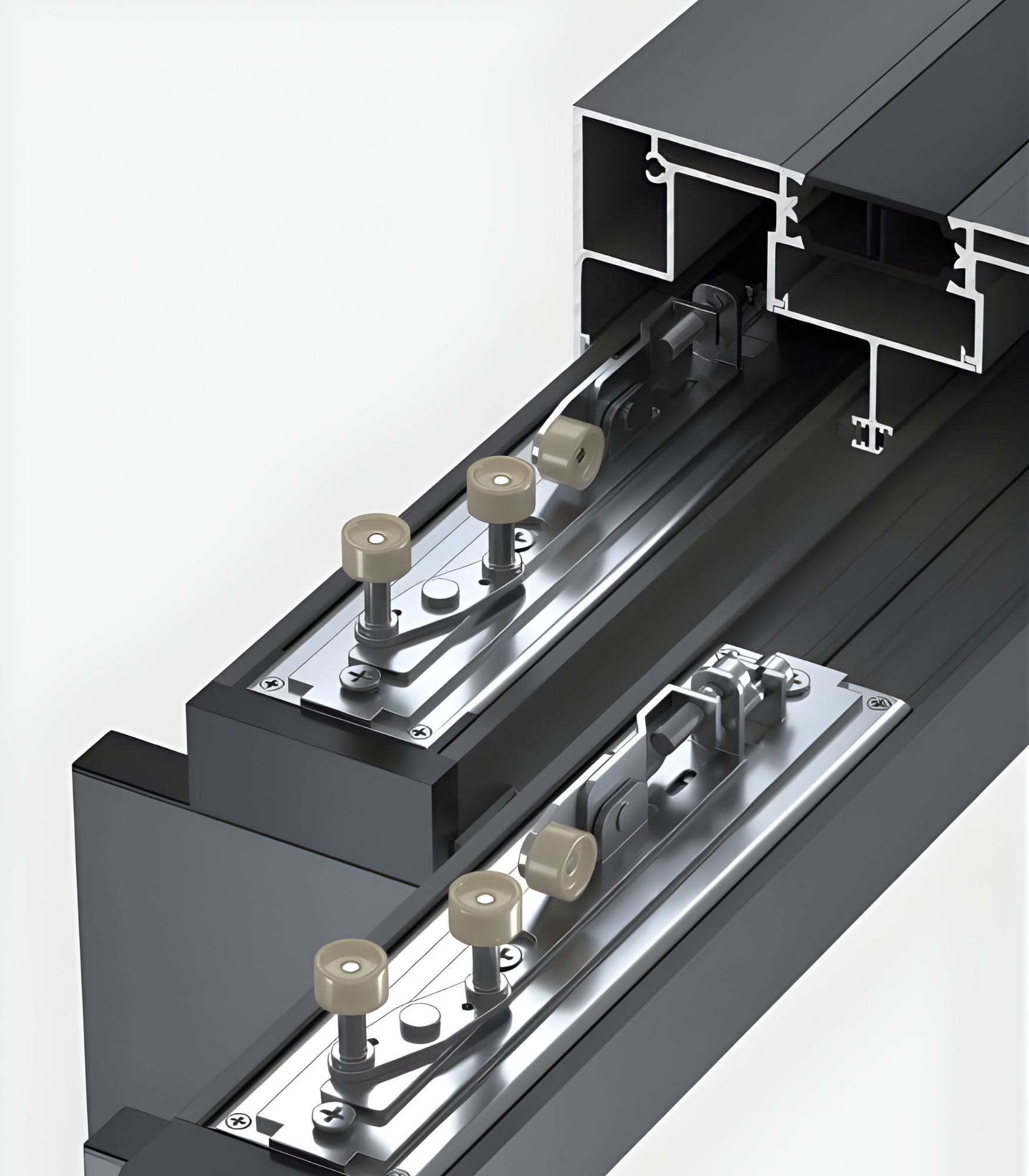

Security & Hardware. The VLX 138 uses a multi-point locking mechanism. When you lift the handle, bolts shoot into the head and sill at multiple points along the panel, not just one latch at the middle. That same lift also engages the seals, which sequences the panels tight. Hardware is stainless steel for Palm Beach salt air, so handles and rollers won’t pit and corrode the way old brass or zinc hardware does within five years of oceanfront exposure.

Color & Glass Options

Premium Black is the strongest seller in Palm Beach right now. It frames the view like a photograph and gives a sharp architectural line against white stucco and light limestone. Modern and transitional homes lean this way. Pure White and Anodized Silver fit the classic Palm Beach coastal look, white columns, pale walls, and crisp trim. They’re timeless and vanish visually so the glass does all the work.

Bronze and Champagne both work well on mid-century homes in El Cid or Grandview Heights that originally had darker anodized frames. Champagne is warmer, Bronze cooler, and both hide finger oils and salt haze better than black. Teak Wood is a powder-coat wood grain that gives you the look of painted timber without the swelling, warping, and termite risk of real wood frames in our humidity. That finish shows up often in Bermuda-style and British Colonial homes in Palm Beach where the interior trim is dark wood.

On the glass side, Low-E is the workhorse choice in Palm Beach for cutting heat gain while keeping views bright. Clear is still right for shaded eastern or heavily landscaped exposures. Black Tint and Gray Tint reduce glare and solar load, and they look sharp on rooms that face the afternoon sun. Frosted and Obscure glass are used on bathrooms, side entries, bedrooms that face a neighbor, or any panel where light should pass but sightlines shouldn’t.

Installation by TruePane Windows & Doors in Palm Beach

We install the VLX 138 the same way we install every door and window we sell: as if we’re going to stand behind it for thirty years, because we are.

It starts with a pre-install inspection at your Palm Beach home. We check the rough opening dimensions, the existing header condition, the slab flatness, and the overall framing for rot, termite damage, or water intrusion. If the opening needs structural repair before the door goes in, we tell you before the order goes out. It’s cheaper to fix framing at that point than after a 36-foot door is sitting on a crooked sill.

On installation day, we set the frame level, plumb, and square. A door this large will not self-correct. If the sill is off by a quarter inch across a 20-foot span, the panels bind, the locks don’t engage, and the weather seals don’t compress evenly. We don’t “good enough” any of it. Every perimeter joint gets AAMA 812 low-expansion foam sealant, creating an airtight, waterproof transition between the door frame and the rough opening. Installation follows AAMA 2400/2410 standard, which covers the full process for installing windows and doors in exterior walls, including flashing, shimming, anchoring, and sealant application.

After the door is set and sealed, we water-test the sill and perimeter. Then panels are set, adjusted, leveled, and the glide is tuned so every panel tracks straight and closes with even compression at the meeting stiles. Finally, we clean up, haul off the old door and debris, and walk you through the operation and care of the hardware.

One note about Palm Beach specifically: the salt air is unforgiving on cheap hardware, and building code here is stricter than most of Florida. A VLX 138 that’s installed improperly, unsealed at the perimeter, or not flashed correctly will still fail. And if an uncertified installer puts holes in the frame or sets it out of square, the manufacturer warranty will not cover the repair. We are authorized by ViewLux to install this product. That matters. We have the training, the tools, and the track record in Palm Beach to set it once and set it right.

Frequently Asked Questions - VLX 138 Panoramic Sliding Door

Get a Quote - VLX 138 Panoramic Sliding Door in Palm Beach

The best way to start is a free on-site measurement. One of our team will come to your Palm Beach home, check the opening, discuss your glass and finish preferences, and put together a written line-item quote. No pressure, no change orders later. Call (850) 801-5596 to schedule your free estimate and let’s get your wall of glass on the calendar.

Written by the team at TruePane Windows & Doors, an authorized ViewLux installation partner serving Palm Beach, FL.
