Bay and bow windows are the architectural feature that turns a flat wall into a bright, curved or angled projection with usable interior space and wide sightlines. In Palm Beach, these windows do double duty: they open up a room and, when built as part of an impact-rated system, they stand up to the hurricane conditions Florida throws at coastal homes. We install bay and bow configurations in laminated impact glass across our PGT, CGI, CWS, ES Windows, ECO, and Mr-Glass lines, engineered to your wind zone and fabricated to your specific opening. If you’re planning a sitting area, breakfast nook, or simply want a room that feels larger, call TruePane Windows & Doors at (850) 801-5596 to schedule a free on-site measurement.

Call (850) 801-5596

Product Overview - Bay & Bow Windows

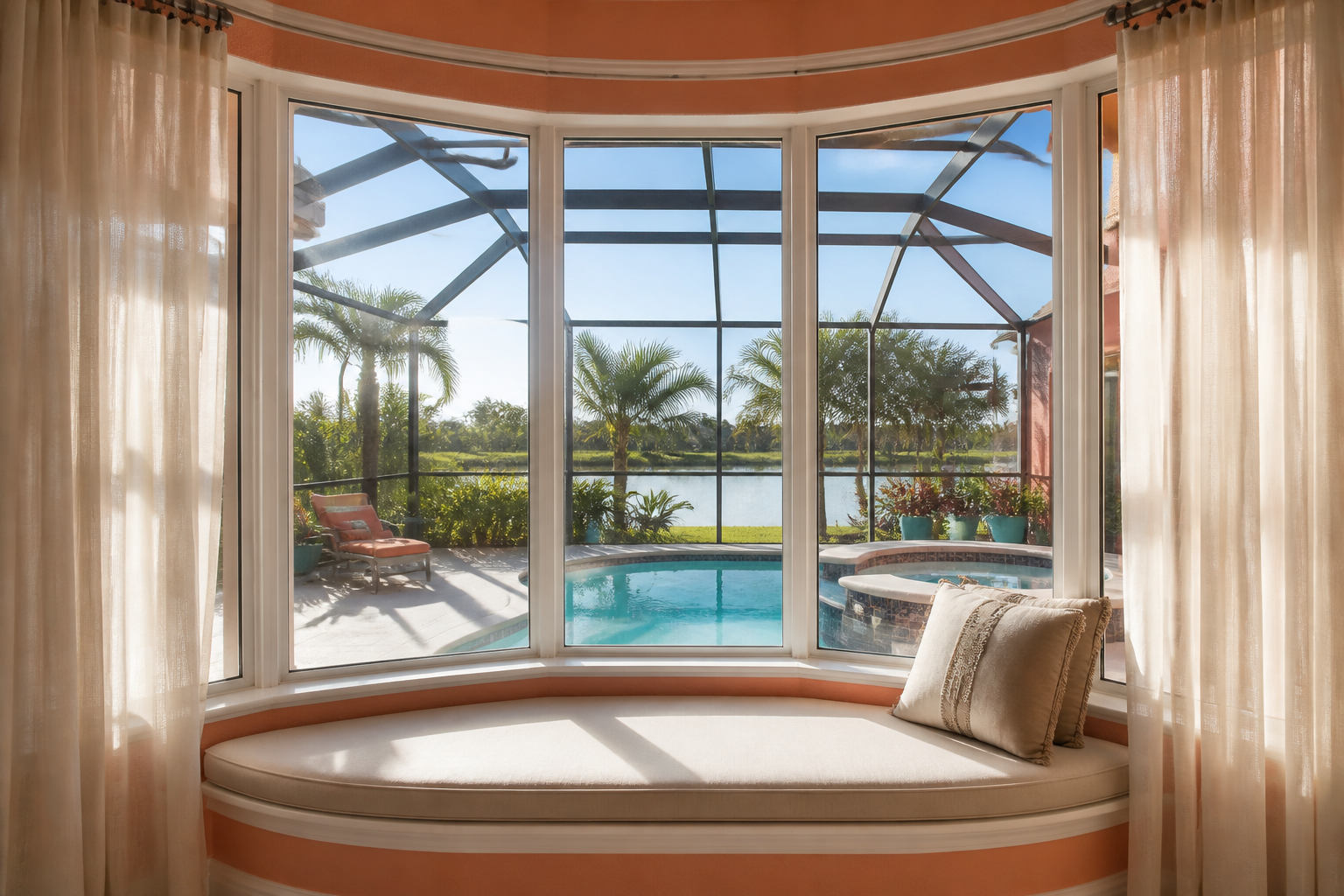

A bay window is typically a three-panel arrangement with a large fixed center unit and two angled flanking windows, usually at 30 or 45 degrees. A bow window uses four or more panels set in a gentle arc that projects outward in a smooth curve. Both create a sense of added square footage inside the room without changing your foundation or roofline.

In Florida, the difference between a decorative bay window and a safe one comes down to the glazing and the frame engineering. Our impact bay and bow windows are built around laminated impact glass with a PVB interlayer that holds the glass in the frame under impact. The projecting design means each panel carries wind load differently than a flat window, so the seat board, head board, and mullion posts must be engineered as a system, not just assembled from stock parts. That’s why we fabricate each configuration to the opening and to the design pressure your specific Palm Beach location requires.

These windows fit well in living rooms, dining areas, master bedrooms, and anywhere you want a reading nook or a wide view of the yard, water, or street. Homeowners in neighborhoods like El Cid, Flamingo Park, and the Northwood Historic District use them to add character to older homes, while newer construction in West Palm Beach and Lake Worth Beach often pairs them with open floor plans where the projection becomes a focal point. TruePane Windows & Doors has installed impact bay and bow windows throughout Palm Beach County, and we know how to keep them level, plumb, square, and sealed against coastal wind-driven rain.

Call (850) 801-5596 and we’ll walk you through the configuration options for your exact room.

Technical Specifications

Every opening is different, so we fabricate bay and bow windows to the measurements of your wall, not the other way around. Here’s what you can choose from when we build your quote:

• Frame materials: Aluminum or vinyl, depending on the look you want and the structural demands of your opening.
• Maximum size: Custom fabricated to the opening. There’s no standard cap; the engineering determines what’s possible.
• Glass options: Laminated impact glass with a PVB interlayer, Low-E insulated glass, tinted glass, or clear glass.
• Color and finish options: White, almond, bronze, black, or tan. These finish colors apply to the frame and mullion components.
• Sill options: Standard sill or a seat/shelf sill, which adds a usable interior ledge for plants, books, or seating.
• Design pressure: Matched to your wind zone, up to +/-100. We never sell a window rated higher than your zone requires, because over-engineering beyond the requirement just adds cost.

All configurations are quoted with Miami-Dade NOA and Florida Product Approval numbers available per configuration, so your permit package is complete from day one.

Hurricane & Compliance Performance

Here are the six compliance and performance features that matter most when you’re comparing impact bay and bow windows in Palm Beach:

Laminated Impact Glass

The glass is built with a PVB (polyvinyl butyral) interlayer sandwiched between panes. If something strikes the window during a storm, the glass may crack but the interlayer holds the fragments in place, keeping the envelope sealed and your home protected from wind and debris. This is the core of what makes an impact window different from a standard window.

Miami-Dade NOA and Florida Product Approval

Our impact bay and bow configurations carry Miami-Dade NOA (Notice of Acceptance) and Florida Product Approval numbers, issued per configuration. That means the exact assembly you buy has been evaluated and accepted for use in high-velocity hurricane zones. We include the specific approval numbers for your configuration on your quote, so you can verify them before signing anything.

FBC and HVHZ Compliance

These products are engineered to Florida Building Code (FBC) High-Velocity Hurricane Zone (HVHZ) requirements. Palm Beach County falls within the HVHZ, which is the strictest wind-borne debris region in the state. A window that’s not HVHZ-rated won’t pass inspection here, and we don’t sell anything that isn’t.

TAS 201, TAS 202, and TAS 203 Testing Context

HVHZ-rated products are tested under the TAS protocol family. TAS 201 covers large-missile impact testing, TAS 202 covers cyclic wind-pressure loading, and TAS 203 covers forced-entry resistance. These tests simulate what a real hurricane does to a window over hours, not seconds. That’s the standard our bay and bow configurations are built to.

Design Pressure for Your Wind Zone

Every opening has a design pressure requirement based on its location, height, and exposure. We match your bay or bow window to your wind zone, up to +/-100, and we never push a higher rating than the structure needs. Correct design pressure matching means the window performs as intended without paying for unnecessary engineering.

Energy Performance

Low-E and insulated glass options are available across our bay and bow configurations. These coatings and gas fills reduce heat gain through the glass, which matters in a room with three or more angled panes facing the Palm Beach sun. Tinted glass is also available for rooms where glare control matters as much as impact protection.

Color & Glass Options

The finish you choose should work with the architecture of your home, not fight it. In Palm Beach, we see a lot of white exteriors on coastal and Mediterranean revival homes, which is why white remains the most common frame color. Almond and tan work well on Spanish-style stucco homes with warm earth tones. Bronze and black frames have grown popular in modern and transitional builds across Palm Beach County, especially when homeowners want contrast against a light exterior walls.

On the glass side, clear laminated impact glass gives you the truest color and the most natural light, which matters in a bay or bow window where the whole point is the view. Low-E insulated glass adds a layer of thermal performance, reducing solar heat gain in rooms that get strong afternoon sun. Tinted glass is useful for west-facing bays in Palm Beach, where late-day glare can make a sitting area uncomfortable. Each glass option is available in laminated impact form, so you never have to choose between storm protection and comfort.

Installation by TruePane Windows & Doors in Palm Beach

An impact bay or bow window is only as good as the installation. Even a Miami-Dade NOA-rated product will fail if it’s set out of level, shimmed poorly, or sealed with the wrong materials. We install per AAMA 2400/2410 practice, which is the standard for proper window installation in this climate, and we use AAMA 812 low-expansion foam as the perimeter sealant on every opening.

Our process starts with a pre-install inspection of the rough opening. We check the condition of the framing, look for signs of water intrusion, and confirm the opening dimensions before anything gets fabricated. When the window arrives, our crew sets it level, plumb, and square, then anchors and seals the perimeter to prevent leaks. After installation, we run a water test to confirm the seal is holding, then clean up the work area before we leave.

There’s a permitting layer here that matters in Palm Beach. Impact windows in HVHZ jurisdictions require product approval submittals as part of the permit package. We provide the NOA and Florida Product Approval numbers for your specific configuration, and we’re familiar with the inspection process in Palm Beach County municipalities, from West Palm Beach to Boca Raton to the smaller coastal towns. Improper installation compromises the NOA-rated system, and that’s the difference between a window that performs in a storm and one that becomes a liability. Our crews have installed these systems in coastal exposure zones across the county, and we stand behind every opening we set.

Call (850) 801-5596 to talk through your specific opening and schedule a measurement.

Frequently Asked Questions - Bay & Bow Windows

Get a Quote - Bay & Bow Windows in Palm Beach

If you’re thinking about a bay or bow window for your Palm Beach home, the right next step is a free on-site measurement. We’ll check your rough opening, talk through configuration options, and give you written line-item pricing with the applicable NOA and Florida Product Approval numbers. Call TruePane Windows & Doors at (850) 801-5596 to schedule yours.

Written by the team at TruePane Windows & Doors, serving Palm Beach, FL and surrounding communities with hurricane-impact window and door installations.
